Titanium

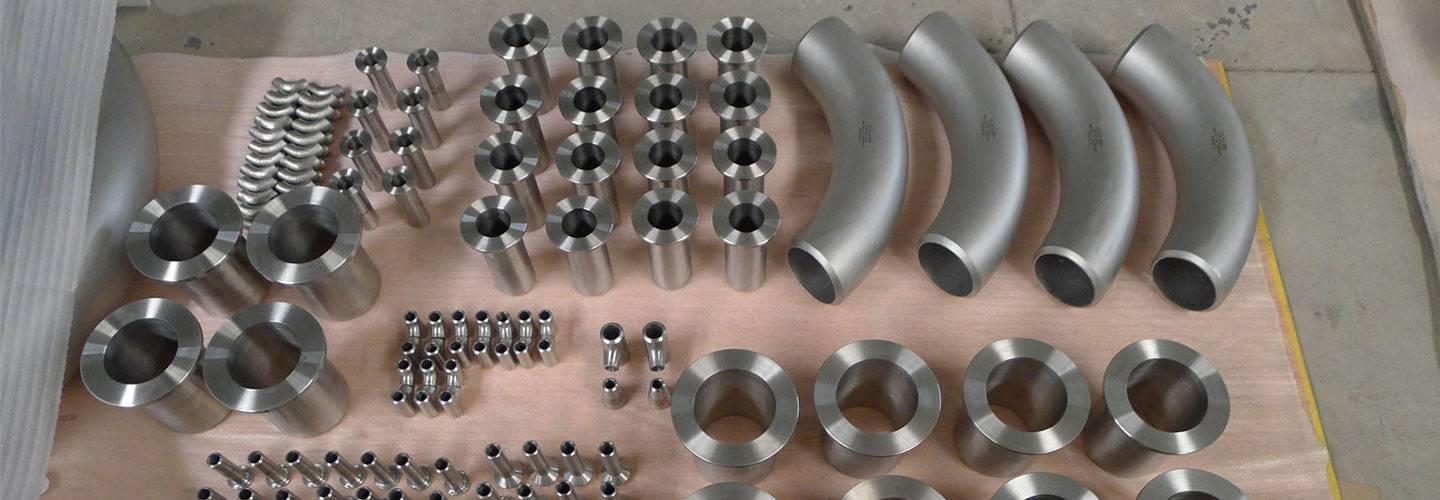

Vinod Metal Industries is a prominent manufacturer, supplier, and exporter of premium quality Titanium products including Pipes & Tubes, Fittings, Round Bars, Sheets, Plates & Coils, Flanges, Fasteners, Angle, and Channel. Titanium is widely recognized for its exceptional strength-to-weight ratio, corrosion resistance, and long service life in demanding environments.
Titanium materials such as Grade 2 and Grade 5 are extensively used in industries like aerospace, marine, chemical processing, medical, and power generation. These materials offer excellent resistance to seawater, acids, and high temperatures, making them suitable for critical and high-performance applications.
With advanced production techniques and strict quality control systems, Vinod Metal Industries ensures that all Titanium products comply with international standards such as ASTM, ASME, and DIN. The company maintains a wide inventory of Titanium grades to meet the specific needs of global clients.
Vinod Metal Industries is committed to delivering superior quality Titanium products with precision engineering, timely delivery, and competitive pricing. Their strong technical expertise and customer-focused approach have established them as a trusted name in the metal industry worldwide.
Chemical Properties (%)
| Grade | Ti | Fe | O | C | N | H | Al | V |
|---|---|---|---|---|---|---|---|---|
| Grade 1 | balance | 0.20 | 0.18 | 0.08 | 0.03 | 0.015 | - | - |
| Grade 2 | balance | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | - | - |
| Grade 5 (Ti-6Al-4V) | balance | 0.40 | 0.20 | 0.08 | 0.05 | 0.015 | 5.5-6.75 | 3.5-4.5 |
| Grade 7 | balance | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | - | - |
| Grade 12 | balance | 0.30 | 0.25 | 0.08 | 0.03 | 0.015 | - | - |
Mechanical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| Grade 1 | 240 | 170 | 24 | 120 |
| Grade 2 | 345 | 275 | 20 | 150 |
| Grade 5 | 895 | 828 | 10 | 350 |
| Grade 7 | 345 | 275 | 20 | 150 |
| Grade 12 | 483 | 345 | 18 | 200 |
Applications
Oil & Gas Industry
Used for transportation of crude oil, natural gas, and petroleum products in pipelines.
Petrochemical Industry
Ideal for handling chemicals, acids, and high-temperature fluids safely.
Power Plants
Widely used in boilers, heat exchangers, and condensers for efficient energy systems.
Construction
Used in structural frameworks, pipelines, and infrastructure development.
Automobile Industry
Applied in exhaust systems, mechanical tubing, and automotive components.
Marine Industry
Suitable for offshore and seawater applications due to corrosion resistance.
Food & Beverage
Used in hygienic processing systems and safe fluid transportation.
Pharmaceutical
Ideal for sanitary pipelines and sterile processing environments.
